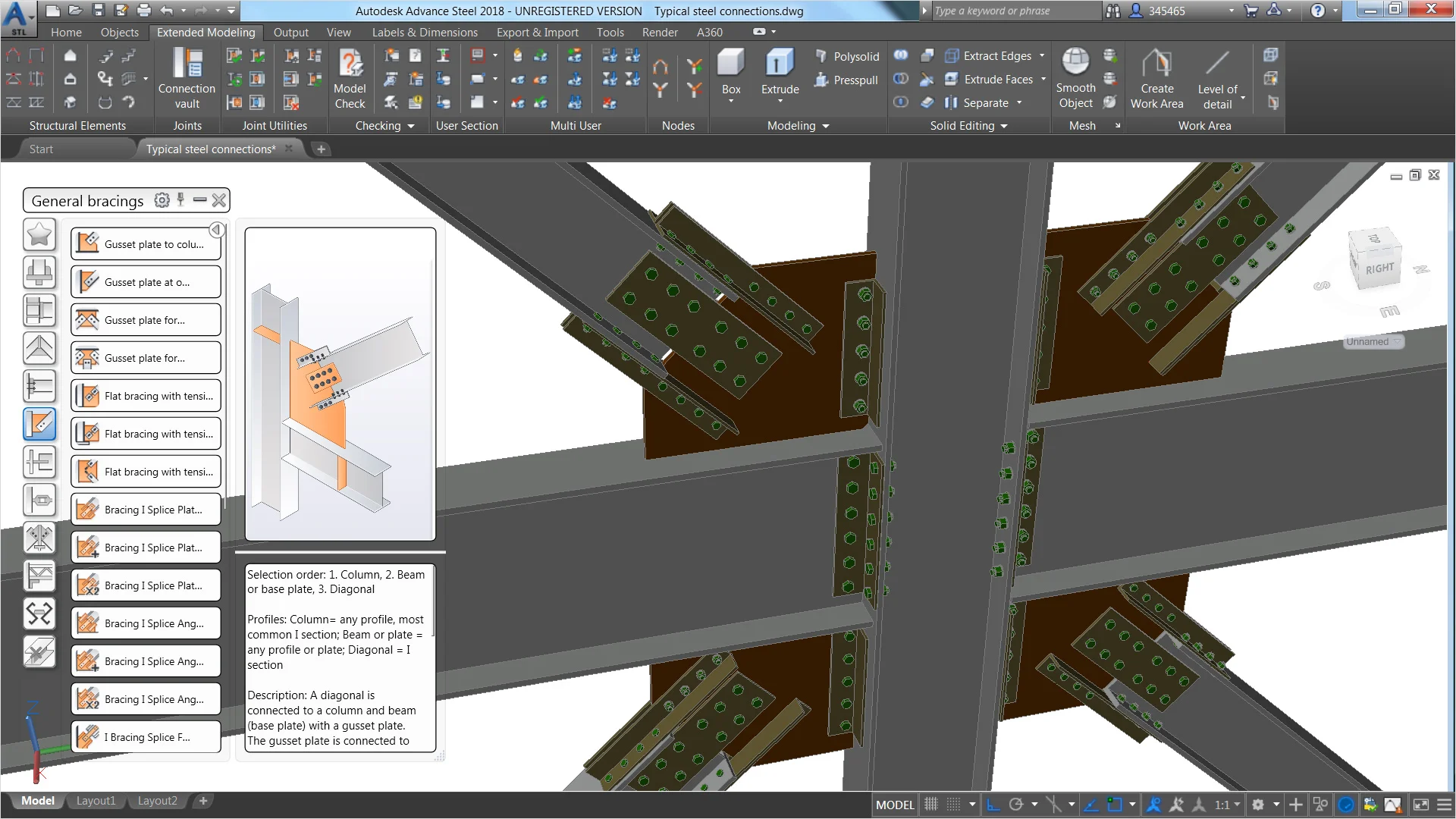

Arctech Welding + Machining now provides steel detailing services for both industrial and commercial projects. The services we provide include:

  • 3D modeling

  • 2D shop drawings

  • 2D erection drawings

  • Advanced bill of materials

  • Fabtrol certified output

  • CNC, DXF and DSTV files


For our 2D and 3D work we are using Tekla. Our detailers successfully bridge the critical divide between the high-tech world of detailing technology and everyday practicality. Our models easily interact with most other detailing and engineering programs. Our experience in the steel detailing industry affords us the ability to maintain consistently high quality and accuracy on every project. All information is cleanly and efficiently presented so our clients can focus on fabrication - not clarification.
